纸碗外套机3

发布日期:[2018-08-06]     点击率:

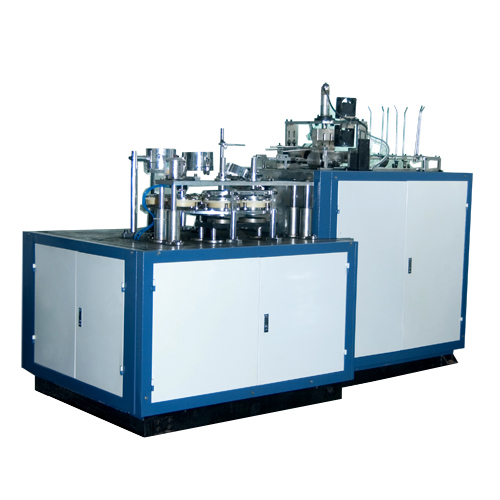

纸碗外套机3

全自动纸杯(纸碗)外套粘合机

Wt-30 Paper Cup/Bowl Sleeve Machine Description:

Model WT-30 Paper Cup/Bowl Sleeve Forming & Wrapping Machine is an automatic equipment to make a second wall sleeve over the inner-cup/bowl(cup/bowl by paper cup/bowl machine).wear a sleeve around the paper cup/bowl.

It is the matching equipment of (ZB0A12) Paper Cup Machine &( ZW-A35),Paper bowl machine,which has the function as photo cell detectioin,failure alarm,counting etc.

It makes double wall paper cup/bowl after running a whole procedure of automatic paper (fan-sleeve)feeding,sleeve cone-body sealing(by ultrasonic wave),water-glue sprying (spray glue inside the cone-sleeve),cup./bowl feeding (absorb cup into the cone-sleeve),inserting and bonding sleeve to the cup collecting with the function of photo electric detection,fault alarm,and count.

It is an ideal equipment of making two/double walls paper cups/bowls such as direct-sleeves cups, ollow-sleeve cups etc. he sleeve-wrapped paper cups are popular for hot drinks tea coffee, etc

全自动纸杯(纸碗)外套粘合机是紧跟市场需要而开发设计的,是ZB-A12型纸杯机和ZW-A36型纸碗机的配套设备。具有自动送纸(印好的外套扇形片)、超声波缝合(形成外套层)、喷胶(在外套内壁)、下碗/杯(已经做好的内层用纸杯,纸碗)、外套与纸碗自动粘合以及光电检测、故障报警、计数等功能。工艺先进,设计合理,设备操作,维护方便。

全自动纸杯(碗)外套粘合机的工作原理是在做好的纸杯、纸碗外再套上一层(隔热),用于生产双层纸杯(咖啡果冻纸杯=香飘飘奶茶两层纸杯等)或两层纸碗(如:康师傅方便面碗,统一方便面晚等)。

主要技术参数 Main Tehinical Parameters

纸杯规格:6-16盎司纸杯:20-50盎司纸碗(模具可调换),

Paper Cup Size:6-16 oz cup/20-50oz bowl(mold exchange able)

纸质原料:PE淋膜纸,以及其他类似淋膜纸(170-350)克;

Raw Material:PE paper,Varnishing Printed Paper,or other film coated paper(can be sealed by ultrasonic);Suitable paper weight:170-350gsm(recommend 250-300gsm)

生产速度:40-50只/分钟

Rated Productivity:40-50 pcs/min

电源要求:220V50 HZ 和380 50HZ都可使用。

Power Source:220/50HZ,380/50HZor other required

总功率:4KW

Total Power:4KW

机器重量:1000KG

Total Weight:1000kg

外形尺寸:长*宽*高 2200*1100*1600mm

Pacakge Size(L*W*H)2200*1100*1600mm
